Choosing the right syringe comes down to four specifications: barrel volume (how much fluid it holds), needle gauge (how thick the needle is), needle length (how deep it reaches), and tip type (how the needle attaches). Get those four right for the medication and the injection route, and everything else is preference.

Most ordering mistakes trace back to one of two things — buying a barrel much larger than the dose requires, which costs measurement accuracy, or matching gauge to comfort rather than to the medication’s thickness, which leaves a needle that’s pleasant to use and too slow to push. This guide covers each specification in turn, with reference tables you can use at the point of ordering.

Key takeaways

• Pick the smallest barrel that comfortably holds the dose — graduation marks are finer on smaller barrels.
• Gauge runs backwards: higher number means thinner needle. 18G is thick, 30G is fine.
• Thick medications need a lower gauge (wider lumen) regardless of comfort preference.
• Needle length is set by injection route and body size, not by gauge.
• Luer lock twists on and holds; Luer slip pushes on and comes off faster.
• Insulin syringes are measured in units, not millilitres, and are not interchangeable with standard syringes.

The Four Decisions That Define a Syringe

Every syringe order is really four separate choices, and they’re decided in a specific order because each one constrains the next:

1. Barrel volume — determined by the dose you’re measuring
2. Needle gauge — determined mainly by medication viscosity, then by comfort
3. Needle length — determined by injection route and patient body size
4. Tip type — determined by whether the needle needs to stay locked on, and whether you’re attaching anything other than a needle

A fifth question — whether you need the needle attached at all — sits alongside these. Syringes with needles come pre-assembled and sterile as one unit. Syringes without a tip paired with separate needle tips let you change needles between drawing and injecting, which is common practice when drawing from a rubber-stoppered vial would dull the injection needle.

Barrel Size: Match the Syringe to the Dose

Choose the smallest barrel that comfortably holds your full dose. Graduation marks are spaced more finely on smaller barrels, so a 1mL syringe measures a 0.4mL dose more precisely than a 10mL syringe measures the same volume.

Common barrel sizes and their uses

Why oversizing costs accuracy

On a 10mL syringe, a 0.5mL dose occupies a small fraction of the barrel and sits between widely spaced marks. The same dose on a 1mL syringe spans half the barrel with fine graduations either side. The reading error that’s invisible on a 5mL dose becomes clinically significant on a 0.3mL one.

The practical rule: the dose should fall in the upper half of the barrel’s range. A 2mL dose belongs in a 3mL syringe, not a 10mL one.

Needle Gauge: How Thick the Needle Is

Needle gauge measures the outer diameter of the needle, and the numbering runs inversely to size — the higher the gauge number, the thinner the needle. An 18G needle is substantially thicker than a 25G, which is thicker again than a 30G.

Gauge by application

For vaccine administration specifically, CDC guidance recommends a 22–25 gauge needle for intramuscular injection across all ages, and a 23–25 gauge needle for subcutaneous injection. CDC’s vaccine administration needle gauge and length reference sets these out by age and route.

Viscosity decides gauge before comfort does

A thinner needle is generally more comfortable, which makes it tempting to default to the finest option available. The limit is flow. Viscous preparations — oil-based medications, thicker hormone preparations, certain antibiotics — move slowly or not at all through a narrow lumen, and forcing them through a fine needle produces excessive plunger pressure, a slow injection, and sometimes a separated hub.

Flow rate drops sharply as the lumen narrows, so the difference between a 21G and a 25G for a thick preparation is not marginal. Where a medication is viscous, a common approach is to draw with a wider needle and inject with a finer one, which is exactly the use case for buying syringes and needle tips separately.

A note on needle wall thickness

Two needles of the same gauge can have different internal diameters. Regular-wall, thin-wall, and ultra-thin-wall needles share an outer diameter but differ in lumen size, so a thin-wall 27G flows faster than a regular-wall 27G at the same perceived comfort. Where flow matters and comfort matters equally, wall thickness is the specification to check on the product detail rather than assuming gauge tells the whole story.

Needle Length: Reaching the Right Tissue

Needle length is determined by the injection route and the patient’s body size, and it is a separate decision from gauge. The needle has to reach the intended tissue layer without going past it — too short deposits an intramuscular dose into subcutaneous fat, too long risks striking bone or deeper structures.

Length by route

CDC’s vaccine administration guidance gives a useful worked example of how body size changes IM needle length in adults, all at 22–25 gauge:

• Under 130 lbs (60 kg): 1 inch (25mm)
• 130–152 lbs (60–70 kg): 1 inch (25mm)
• Men 153–260 lbs (70–118 kg) / women 153–200 lbs (70–90 kg): 1–1.5 inches (25–38mm)
• Men over 260 lbs (118 kg) / women over 200 lbs (90 kg): 1.5 inches (38mm)

A 5/8" needle may be used for deltoid IM injection only where the skin is stretched flat and subcutaneous tissue is not bunched. Most adolescents and adults require a 1" to 1.5" needle for reliable intramuscular delivery.

For subcutaneous injections, a 5/8" needle is used across all ages per the same guidance — and insulin needles, which are typically 4mm to 8mm, are shorter still because they are designed for a pinched-skin or perpendicular technique into shallow subcutaneous tissue.

Tip Type: How the Needle Attaches

The tip is the connection between barrel and needle, and it determines whether the needle can detach under pressure.

Luer lock is a syringe tip with a threaded collar that the needle hub screws onto, creating a secured connection that resists detaching under pressure. It’s the safer default when injecting a thick medication, when plunger force will be high, or when a needle coming loose would mean lost dose and exposed sharp.

Luer slip is a syringe tip the needle hub pushes onto by friction fit. It’s faster to attach and detach, which matters in volume settings, and is entirely appropriate for routine low-pressure subcutaneous and IM injections.

Luer connectors for hypodermic and intravascular use are covered by the ISO 80369-7 small-bore connector standard, which is why a needle from one manufacturer fits a syringe from another. That interoperability is why buying syringes without a tip and needle tips separately works reliably across brands.

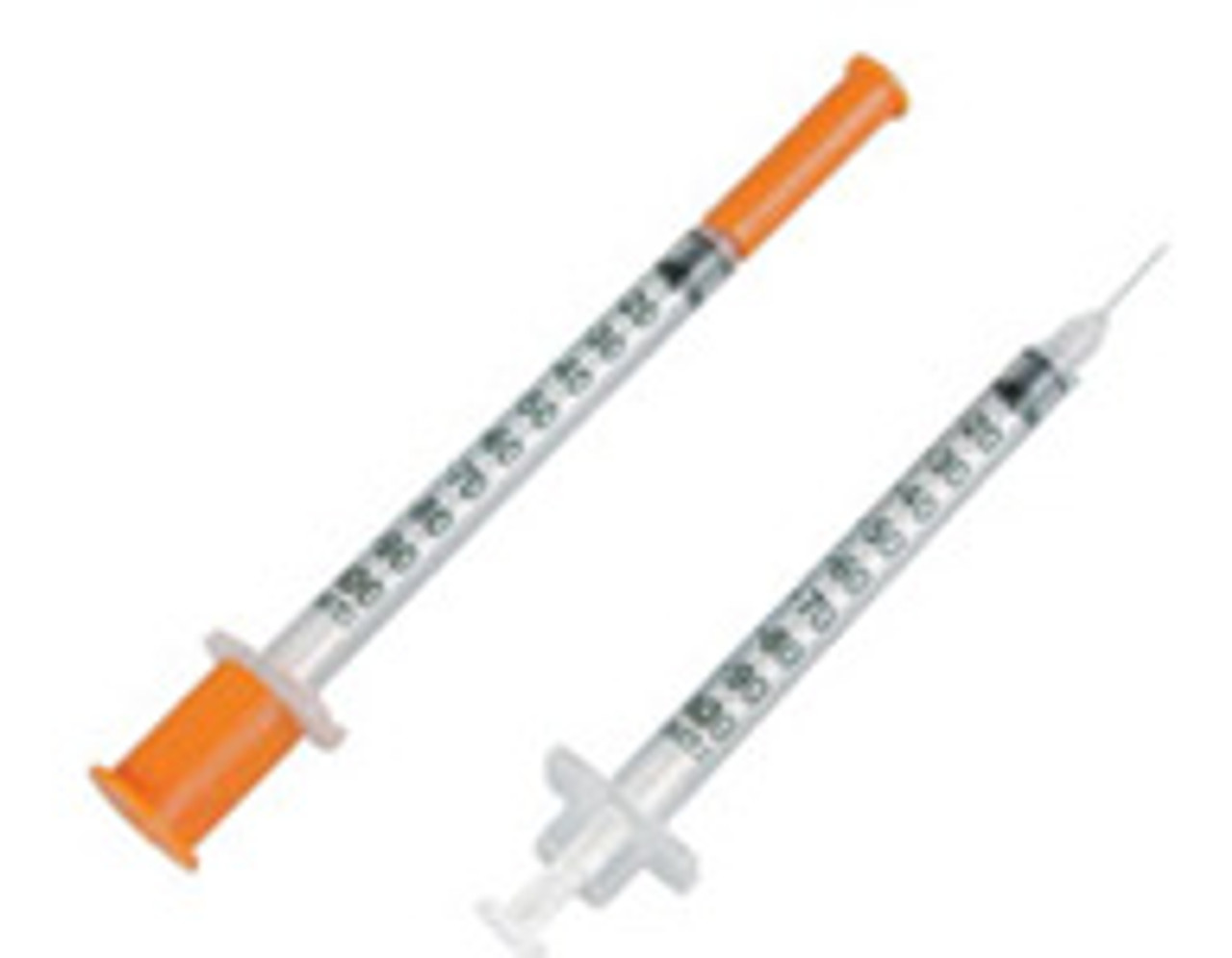

Insulin Syringes Are a Separate Category

An insulin syringe is a syringe graduated in insulin units rather than millilitres, designed for U-100 insulin where 1mL contains 100 units. It has a permanently attached ultra-fine short needle and a low dead-space design that minimises medication left in the hub.

The three standard sizes:

Two points that cause real problems when missed:

• Insulin syringes are not interchangeable with standard syringes. A standard 1mL syringe marked in millilitres cannot be used to measure a unit-based insulin dose without conversion, and conversion errors in insulin dosing are serious.
• The unit markings assume U-100 concentration. Concentrated insulins exist at other strengths, and a U-100 syringe will not measure them correctly.

Browse insulin syringes in all three standard sizes.

Safety-Engineered Syringes

A safety syringe includes a built-in mechanism — a retracting needle, a hinged shield, or a sliding sleeve — that covers or withdraws the needle after use to reduce needlestick risk. In US workplaces this is not purely a preference: OSHA’s Bloodborne Pathogens Standard, as amended by the Needlestick Safety and Prevention Act, requires employers to evaluate and implement safer medical devices where appropriate, and to involve frontline employees who use sharps in selecting them.

The context for that requirement: the CDC estimates approximately 385,000 needlesticks and other sharps injuries among hospital-based healthcare personnel annually, around 1,000 per day, per NIOSH’s sharps injury prevention work.

Safety devices cost more per unit. For facilities, that cost sits against the cost of exposure follow-up, lost time, and the documentation burden of a reportable injury.

Buying Syringes in Bulk: A Procurement Checklist

For clinics, pharmacies, labs, and care facilities, the specification questions are joined by sourcing questions.

Regulatory language matters

Syringes and needles are medical devices, and the correct terminology is FDA-cleared — most are cleared through the 510(k) premarket notification pathway — or manufactured in an FDA-registered facility. “FDA-approved” is a different regulatory status that applies to drugs and to a narrow class of high-risk devices, and using it for a syringe is inaccurate. Supplier documentation that uses the term loosely is worth a second look.

What to verify before a volume order

• Sterility and packaging integrity — individually sealed, sterile, single-use, with intact blister or peel packs
• Lot number and expiration dating — confirm remaining shelf life is long enough for your turnover rate, not just technically unexpired
• Latex content — many facilities require latex-free for patient and staff allergy policies
• Standards compliance — sterile single-use hypodermic needles are covered by ISO 7864, and Luer connections by ISO 80369-7
• Consistency of supply — switching brands mid-stock means staff adjusting to different plunger resistance and hub fit
• Tiered pricing breaks — volume thresholds change unit economics significantly
• Discreet packaging, where patient privacy or delivery location is a consideration

Build the order around actual usage

Rather than stocking one size heavily, map your actual injection mix. A typical general practice ends up with something like:

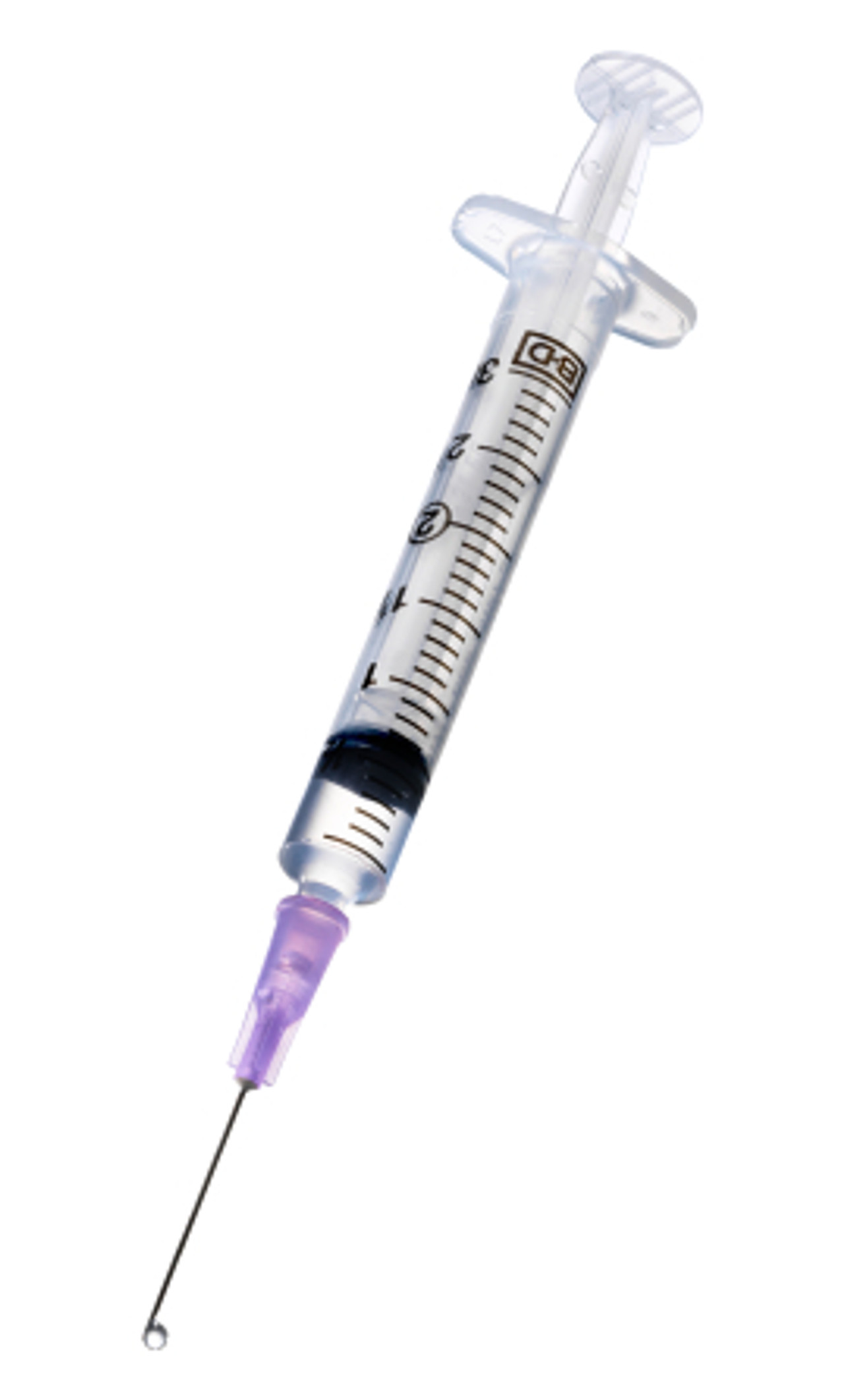

• 3mL Luer lock with 25G x 5/8" for routine subcutaneous work
• 3mL Luer lock with 22–23G x 1–1.5" for intramuscular

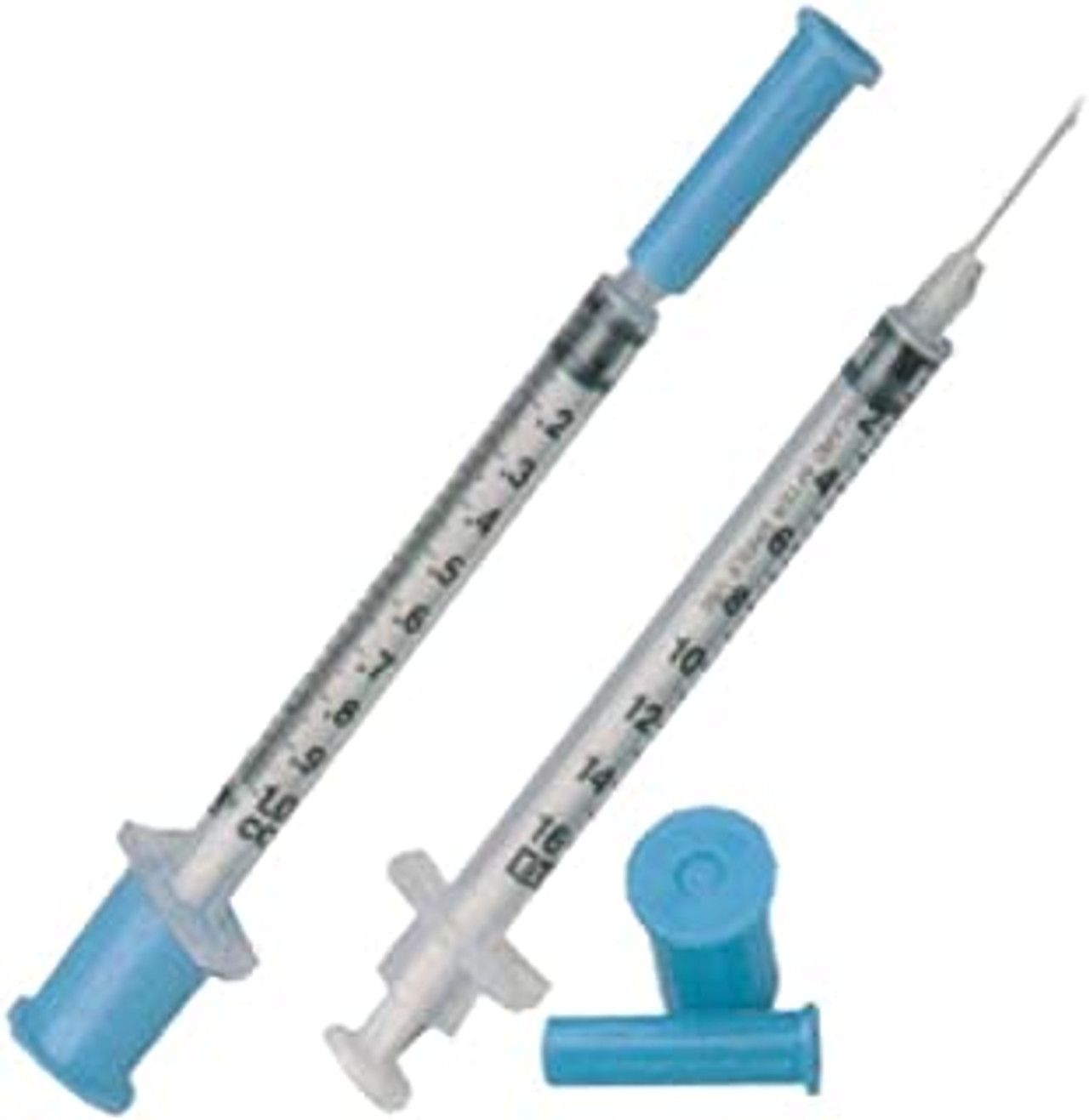

• 1mL for tuberculin and small-volume dosing
• 10mL slip tip with 18–20G for drawing and reconstitution
• Insulin syringes in whichever of the three sizes matches patient dosing
• Sharps containers sized for each room, replaced at three-quarters full

Request a bulk quote for pricing across a mixed order.

Common Mistakes

• Buying one barrel size for everything. A 10mL syringe measuring a 0.5mL dose is a precision problem waiting to happen.
• Choosing gauge by comfort alone. If the medication is thick, a fine needle makes the injection slow and difficult regardless of how it feels going in.
• Treating gauge and length as one decision. They’re independent, and a correct gauge at the wrong length still deposits the dose in the wrong tissue.
• Using slip tip for high-pressure injections. Under force, a friction-fit needle can separate from the barrel.
• Mixing insulin and standard syringes. Units and millilitres are different measurement systems.
• Reusing needles. A used needle is dulled, which increases tissue trauma and pain, and carries contamination risk even when used by one person.
• Ordering without checking expiration dating. A large volume discount on short-dated stock isn’t a saving.

Frequently Asked Questions

What size syringe should I use?

Use the smallest barrel that comfortably holds your full dose, with the dose falling in the upper half of the barrel’s range. A 3mL syringe handles most routine intramuscular and subcutaneous injections; 1mL is standard for insulin, tuberculin, and small-volume dosing; 10mL and above are used mainly for drawing, flushing, and irrigation.

Is a higher gauge needle bigger or smaller?

Smaller. Needle gauge runs inversely to diameter, so a higher number means a thinner needle. An 18G needle is thick and used for drawing viscous medication; a 30G needle is ultra-fine and used for insulin and intradermal injections.

What is the difference between Luer lock and slip tip?

A Luer lock syringe has a threaded collar that the needle hub screws onto, creating a secured connection that resists detaching under pressure. A slip tip holds the needle by friction fit, which is faster to change but can separate under high plunger force. Use Luer lock for viscous medications and high-pressure injections.

What gauge needle is used for insulin?

Insulin needles are typically 28G to 31G — ultra-fine, because insulin is a low-viscosity medication injected in small volumes into shallow subcutaneous tissue. Insulin needle lengths are usually 4mm to 8mm.

Can I use a regular syringe for insulin?

No. Insulin syringes are graduated in units based on U-100 concentration, while standard syringes are graduated in millilitres. Measuring an insulin dose on a millilitre-marked syringe requires conversion and introduces a serious risk of dosing error.

What needle length do I need for an intramuscular injection?

Most adolescents and adults require a 1" to 1.5" needle for reliable intramuscular delivery, at 22–25 gauge, with the exact length set by body weight and injection site. CDC guidance specifies 1.5" for men over 260 lbs and women over 200 lbs.

Do I need the needle attached to the syringe?

Not necessarily. Pre-assembled syringes with needles are convenient and sterile as a unit. Buying syringes and needle tips separately lets you draw with a wider needle and inject with a finer one, which is standard practice when drawing from a rubber-stoppered vial would dull the injection needle.

What does FDA-cleared mean for a syringe?

Most syringes and needles reach the US market through the FDA’s 510(k) premarket notification pathway, which makes them FDA-cleared rather than FDA-approved. “Approved” applies to drugs and to a small category of high-risk devices, so it is not the correct term for a standard syringe.

Key Takeaways

• Smallest barrel that holds the dose, with the dose in the upper half of the range.
• Gauge runs backwards — higher number, thinner needle.
• Viscosity sets the gauge floor; comfort decides within what’s left.
• Length is set by route and body size, independently of gauge.
• Luer lock for pressure and viscosity; slip tip for speed and routine volume.
• Insulin syringes measure units, not millilitres, and don’t substitute for standard syringes.
• For bulk orders, check sterility, lot and expiry, latex content, and the supplier’s regulatory language.

Shop syringes with needles, syringes without a tip, needle tips, and insulin syringes at BulkSyringes.com, or request a custom quote for facility volume pricing.

Sources

1. CDC — Vaccine Administration: Needle Length and Gauge Charts: https://www.cdc.gov/vaccines/hcp/administration/during.html
2. CDC (stacks) — Vaccine Administration: Needle Gauge and Length reference table: https://stacks.cdc.gov/view/cdc/129989/cdc_129989_DS1.pdf
3. Immunize.org — Anatomic site and needle length for intramuscular and subcutaneous injection: https://www.immunize.org/ask-experts/anatomic-site-needle-length-intramuscular-subcutaneous-injection
4. OSHA — Bloodborne Pathogens Standard, 29 CFR 1910.1030: https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.1030
5. CDC / NIOSH Science Blog — Needlestick and sharps injury estimates: https://blogs.cdc.gov/niosh-science-blog/tag/needles
6. MedlinePlus (NIH) — Insulin and Syringes: Storage and Safety: https://medlineplus.gov/ency/patientinstructions/000962.htm

Last updated: October 2026. This article is general information and is not a substitute for medical advice. Follow your prescribing clinician’s or facility’s protocols for device selection.
